SPECIAL STEEL PLATES
Special steel plates are Armoured, Wear resistant and high yield strength plates used for applications such as armoured vehicles, wear resistant tools, material handling and mining. Q Steel stocks & supplies the following types of Special Steel:

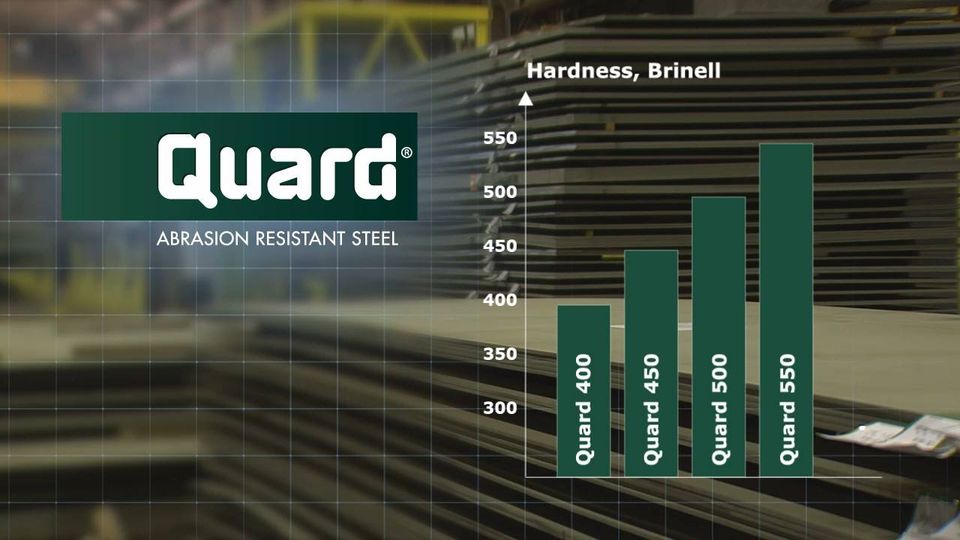

Wear/Abrasion Resistant Plates
Quard is the abrasion resistant steel designed to resist wear in applications linked to earth moving, transport, construction, mining, quarrying and recycling industries among others. Its excellent wear resistance makes it the ideal steel to be used in most abrasive conditions and it's durability to reduce the weight of your equipment.
-
Applications of Quard® :
- Yellow Goods
- Mining and Quarrying
- Recycling
- Agriculture
- Industrial Plant Manufacturing
Quard 400
Quard® 400 is a martensitic wear/abrasion resistant steel with an average hardness of 400HBW. Due to its versatility in terms of high toughness, good cold formability and excellent weldability, Quard® 400 combines an outstanding workshop performance and a long lasting wear resistance.
-
Applications of Quard® 400:
- Mining and earthmoving machinery
- Crushing and pulverizing equipment
- Buckets, knives, crushers, feeders
- Presses
- Skips
- Excavators
- Slurry pipe systems
- Screw conveyors
Quard® 450
Quard® 450 is a martensitic wear/abrasion resistant steel with an average hardness of 450HBW. The steel offers very high resistance to abrasive wear and impact granting a longer service life.
For Quard® 450, guaranteed Hardness 420-480 (HBW)
-
Applications of Quard® 450:

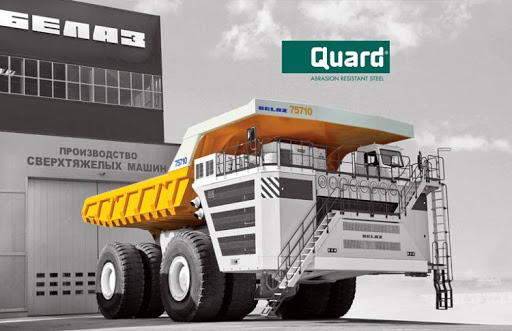

- On road tipper and dumper bodies
- Cement drum mixer barrels
- Refuse haulers, scrap containers
- Buckets, knives
- Feeders, skips, screw conveyors
- Mining and earthmoving machinery
Quard® 500:
Quard® 500 is a martensitic wear/abrasion resistant steels with an average hardness of 500 HBW. Its very high resistance to abrasive wear and impact makes it ideal where long service life is required.
For Quard® 500, guaranteed Hardness 470-530 (HBW)
-
Applications of Quard® 500:
- Screeners
- Crushing and pulverizing equipment
- Conveyors belts
- Grapples
- Scrap presses

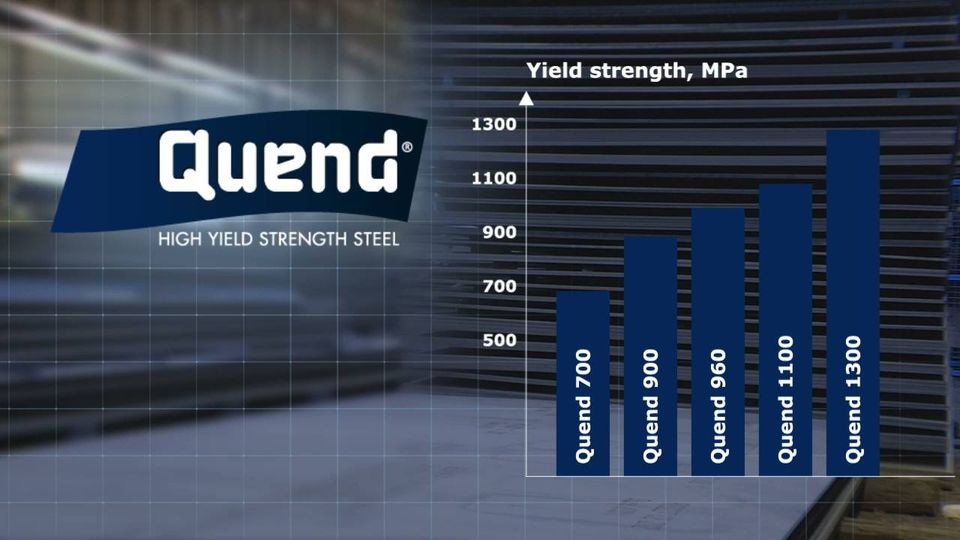

High Yield Strength Steel
Quend® product line refers to high yield strength steels developed for low weight applications which require high carrying capacity such as lifting or transportation. It reduces the weight of lifting equipment or of applications whose structure has to withstand high loads. Its main applications are in boom sections for truck cranes, chassis, outriggers, grapples, desk structures, etc.
-
Sectors where Quend® is used:
- Lifting
- Handling
- Transport
Quend® 700
Quend® 700 is extra high strength structural steel produced as quenched and tempered with a minimum yield strength of 700 MPa. Quend® 700 complies with the requirements corresponding to the S690QL given in the EN 10025-6 standard, where a minimum impact toughness of 27J is guaranteed at -40 degree Centigrade.
-
Applications:
- Truck chassis
- Lifting and hoisting equipment
- Handling equipment
- Trailers
Quend® 900
Quend® 900 is extra high strength structural steel produced as quenched and tempered with a minimum yield strength of 900MPa. Quend® 900 complies with the requirements corresponding to the S890QL given in the EN 10025-6 standard, where a minimum impact toughness of 27J is guaranteed at -40 degree Centigrade.
-
Applications:

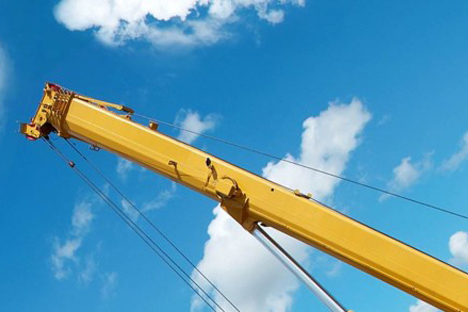

- Crane booms
- Lifting equipment
- Stabilising support
- Undercarriage
Quend® 960
Quend® 960 is extra high strength structural steel produced as quenched and tempered with a minimum yield strength of 960MPa. Quend® 960 complies with the requirements corresponding to the S690QL given in the EN 10025-6 standard, where a minimum impact toughness of 27J is guaranteed at -40 degree Centigrade.
-
Applications:
- Crane booms
- Lifting equipment
- Stabilising support
- Undercarriage
- Lifting and hoisting equipment
- Handling equipment
- Trailers
Q Calculator
Q Calculator helps you to find all the optimal parameters for cutting, bending, welding or machining Quard® (abrasion resistant steel) and Quend® (high yield strength steel).
By selecting the type of work you need to perform and entering basic information about our steels, you’ll get precise answers on how to set up your machine and to undertake your task easily.
So, you can deliver neat and high quality work in a jiffy. And as it works offline, you have always the results, wherever you are in the workshop or on the field and whenever you want.
Q Calculator is available in different languages. Q Calculator can be downloaded to your mobile from Playstore/Appstore.
